Please read the instructions linked at the bottom of this description before deciding to purchase! This is a very prototype-y Prototype!
Have you ever wanted to add your own programmable sessions and code to your Tremblr device? Have you ever wanted to use XToys* to control it? Now you can with this new prototype control board! It even has a USB port for easy loading! Wow!~

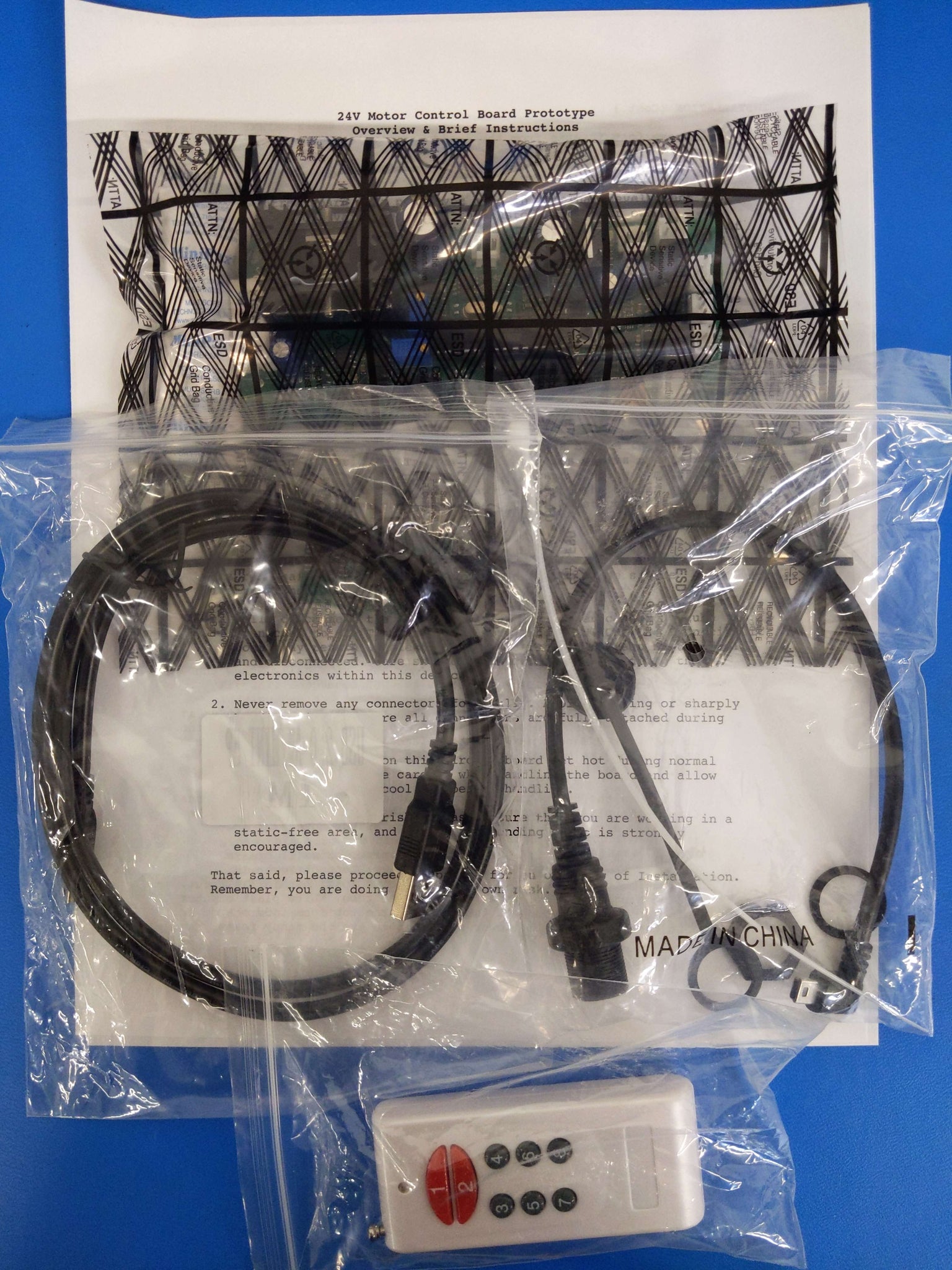

What is included:
1 Control Board
1 Mini USB Cable
1 Panel USB Connector
1 Air Tube Zip Tie
1 Instruction Packet
1 Remote Receiver (Free! For your own experimentation.)

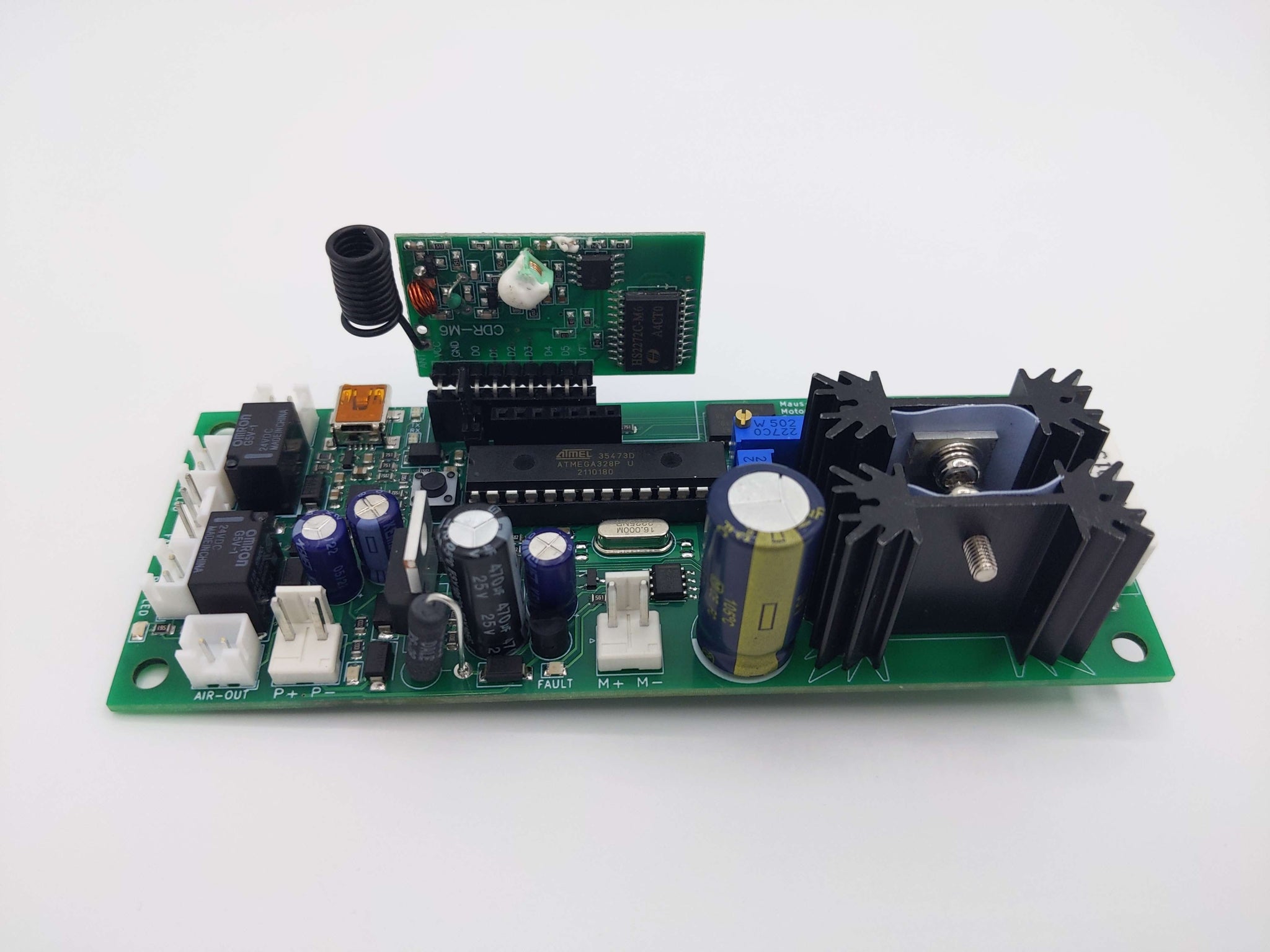

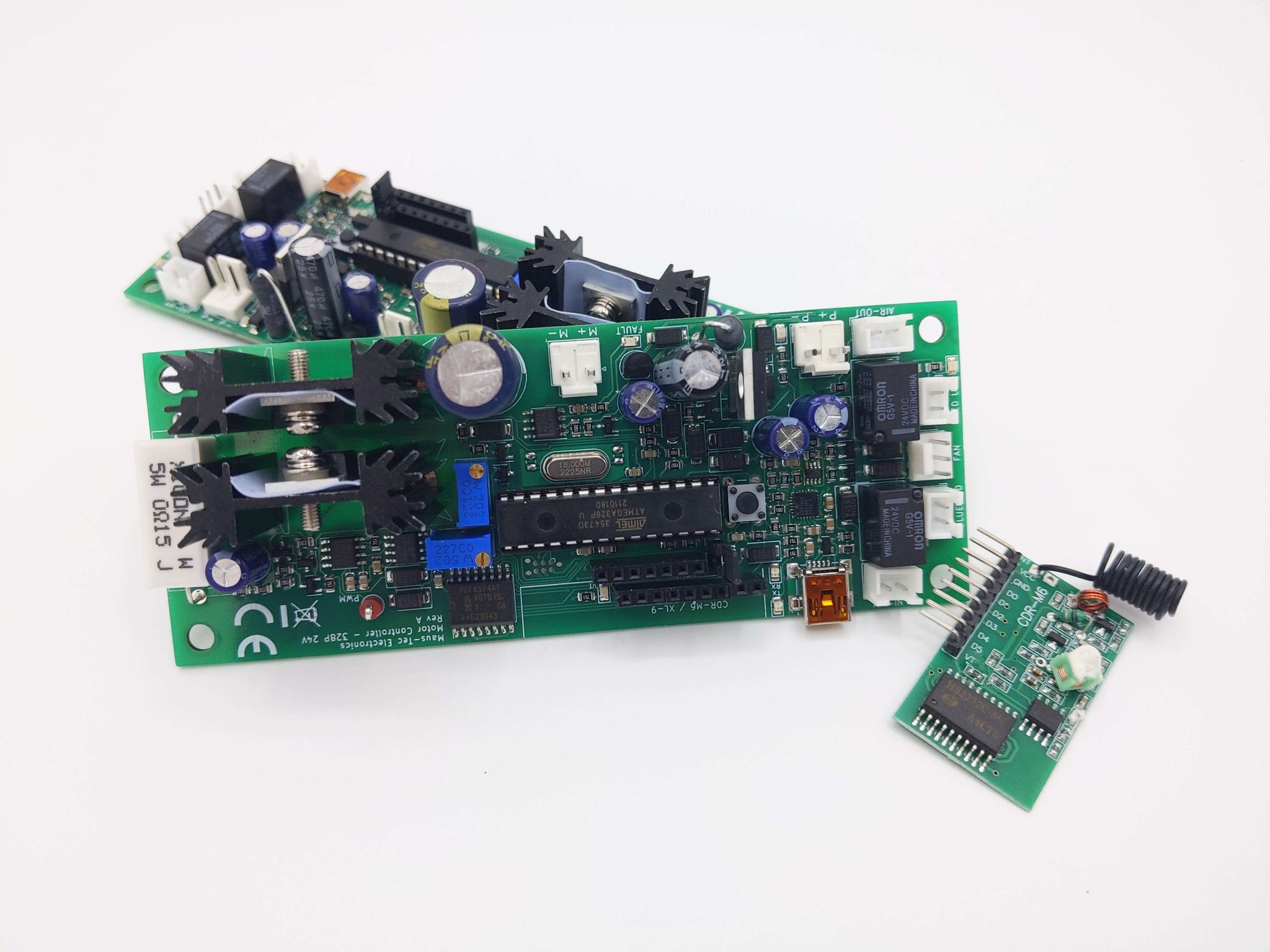

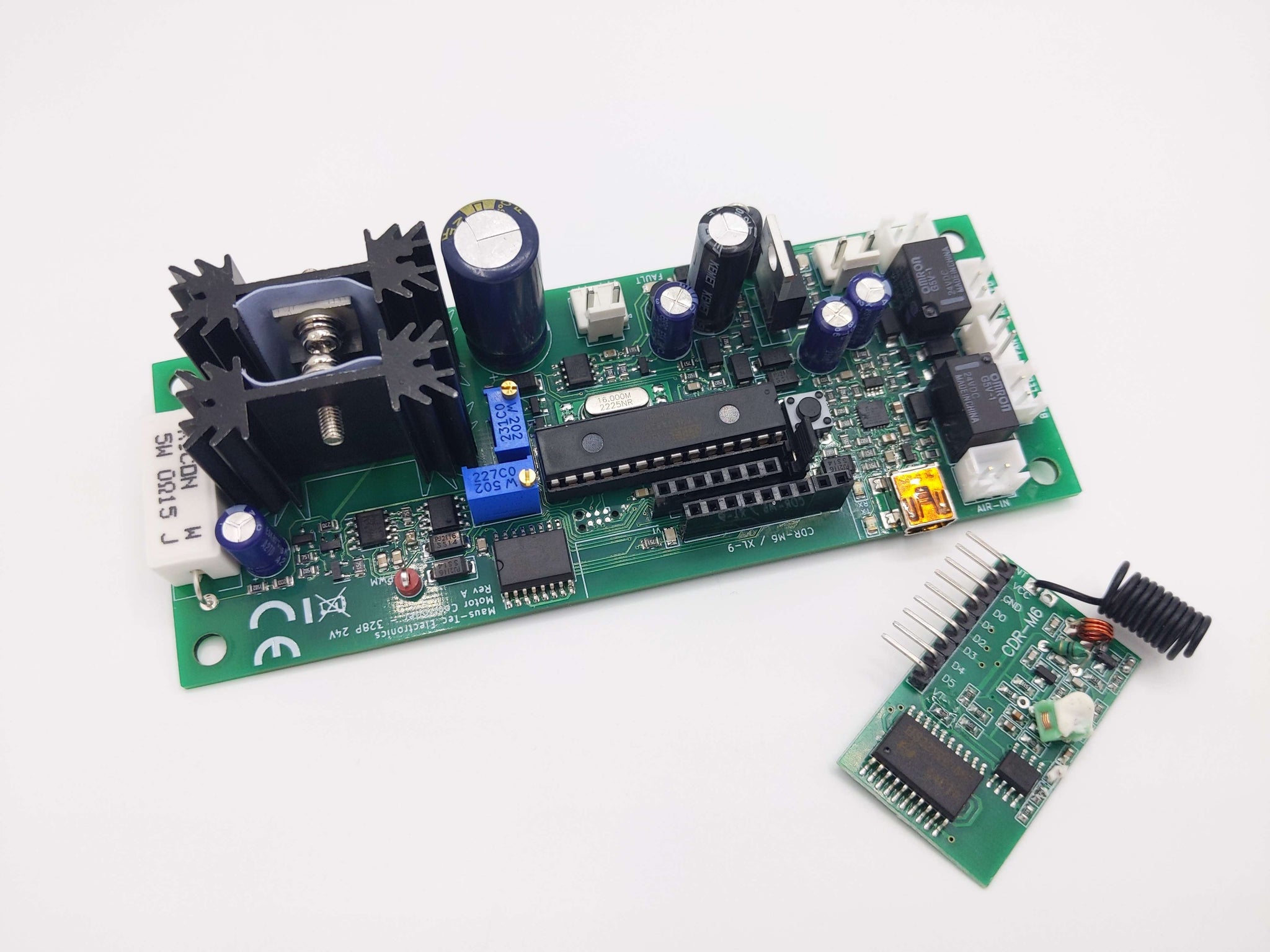

This is a drop-in controller board for Tremblr-like devices. It runs on 24V DC, supports 2 air valves and a DC motor driven at ~12KHz PWM, and a 3-wire 24V cooling fan. It's protected by hardware stall detection on both the fan and motor. You can even bodge a current sense wire for motor position feedback if you want.
The receiver module is compatible with the original Tremblr remote, and the microcontroller runs this firmware package to control everything. The hardware-based stall detection overrides firmware by default and signals a fault to the microcontroller.
This firmware implements both the original remote control and TS-Code over USB Serial.
This board is not the final control board that Maus-Tec will be producing. As such, it is not directly compatible with the Edge-o-Matic 3000 or other Maus-Bus accessories. This board is designed for experimenting and prototyping, and as such you're doing so at your own risk!
You can find a full write up with more details here.
You can find an overview and instructions for installation here. This is also included as a print out with the product.
* XToys compatibility isn't immediately available, but this is a TS-Code compatible device so integration should be easy!
** This can only ship within the US, since it's a super prototype and we want to keep support close at hand. International customers, please look forward to our final product release!
